Primary Packaging

In the area of primary packaging, ModWave partners with Capmatic of Montreal, Canada. Capmatic offers systems and solutions for a wide range of packaging applications, including:
  • Filling of Liquids, Gels and Creams
  • Tablet Counting
  • Capping
  • Labeling
  • Accessories – Unscrambling, Rinsing, Banding, etc.
  • Integration of Complete Packaging Lines for a Wide Range of Industries
  • Sterile Filling systems for sterile filling of injectable and ophthalmic products.

Capmatic has a wide selection of solutions that can be customized to suit your primary packaging needs. This includes
Individual packaging components:
  • Bottle unscramblers
  • Fillers for tablets, liquids, gels, creams, gummies, and more
  • Cappers
  • Sealers
  • Cap torquers and re-torquers
  • Cotton and Dessicant Dispensers
  • Labelers including top, bottom, sides, multiple labels, etc.
  • Solutions for spoon insertion, instruction insertion, etc.
Complete packaging lines consisting of above solutions
  • Can be customized to meet your needs and the floor constraints at your facility
Monoblock machines- All in one machines that can do a number of above individual functions
  • Footprint saving design and maximum flexibility

Available Monoblock Solutions
  • Axy- Peristaltic dosing station for liquids. Developed for filling of Micro-Tubes
  • Bambino- Compact single index rotary Monoblock system for liquid filling, plugging, capping/crimping, and labelling. Up to 30 BPM. Explosion proof available as option.

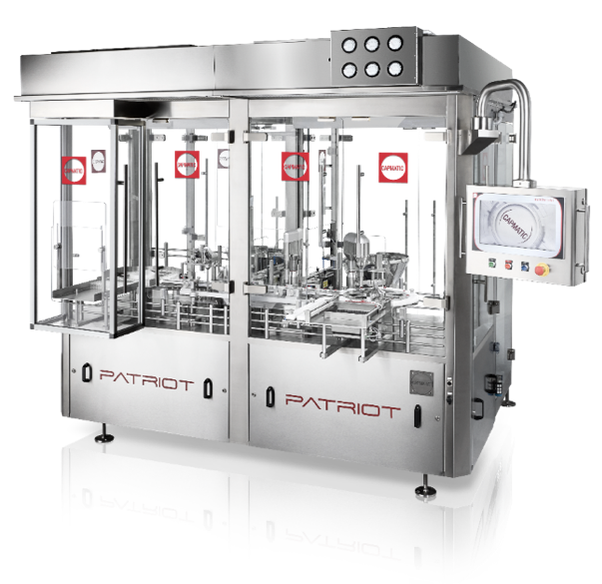

  • Patriot-  Single index, liquid filling with (4x) servo-driven volumetric pistons, with plugging, and capping. Capable of up to 60 BPM. Explosion proof available as option.
  • Intrepid- Double index Monoblock system. Pump and bottom up filling of liquids with plugging, capping, and crimping. Up to 120 BPM. Explosion proof available as option.
  • Conquest- High speed system for liquid filling, plugging, capping, crimping, pump/trigger-pump assembly capable. Up to 300 BPM. Explosion proof available as option.
  • Conquest Pharma- Continuous motion rotary mono block system.Pump and bottom-up fill of liquids for pharmaceutical applications. Includes plugging, capping, crimping. Up to 300 BPM. Explosion proof as option.
  • Bambina- Special edition Monoblock supporting research for breast cancer. Liquid filling, plugging, capping, labeling. Single index capable of up to 40 BPM. Available as explosion proof.
  • Bambino Arlecchino- Explosion proof and specifically designed for nail polish. Liquid filling, shaker ball, brush,, capping, labeling. Single index capable of up to 35 BPM.
  • Synergy Bambino- Inline sequential single-index motion Monoblock. Liquid filling, plugging, capping, labeling. Speeds up to 40 BPM. Explosion proof as option.
  • Synergy Patriot- Single index inline Monoblock. Liquid filling, plugging, capping/crimping, labeling. Speeds up to 60 BPM. Explosion proof as option.
  • Synergy Intrepid- Double index inline mono block. Liquid filling, plugging, capping, crimping. Speeds up to 120 BPM. Explosion proof as option.
  • Patriot SF1- Tablet counting/filling, desiccant insertion, cotton insertion, capping/seal induction,  final torque. Speeds up to 30 BPM. Options: RABs capability, explosion proof.
  • Patriot SF2- Tablet counting/filling, desiccant insertion, cotton insertion, capping/seal induction,  final torque. Speeds up to 60 BPM. Options: RABs capability, explosion proof.
  • Intrepid SF- Tablet counting/filling, desiccant insertion, cotton insertion, capping/seal induction,  final torque. Speeds up to 100 BPM. Options: RABs capability, explosion proof.
  • Accustar- Inline liquid filling and capping
  • Eklips- Rotary continuous motion. Rinsing, filling, capping. Up to 400 BPM. Options: CIP System, Different liquid fill systems, bottle rinsing turret, EXP version
